NetApp
Brian McKean, a senior engineer at NetApp, gave a talk about his company in class. He shared a data problem for our class to help solve.
Tool
Tableau
Authors
This report is prepared by
What percentage of the data points have time deltas of one day.

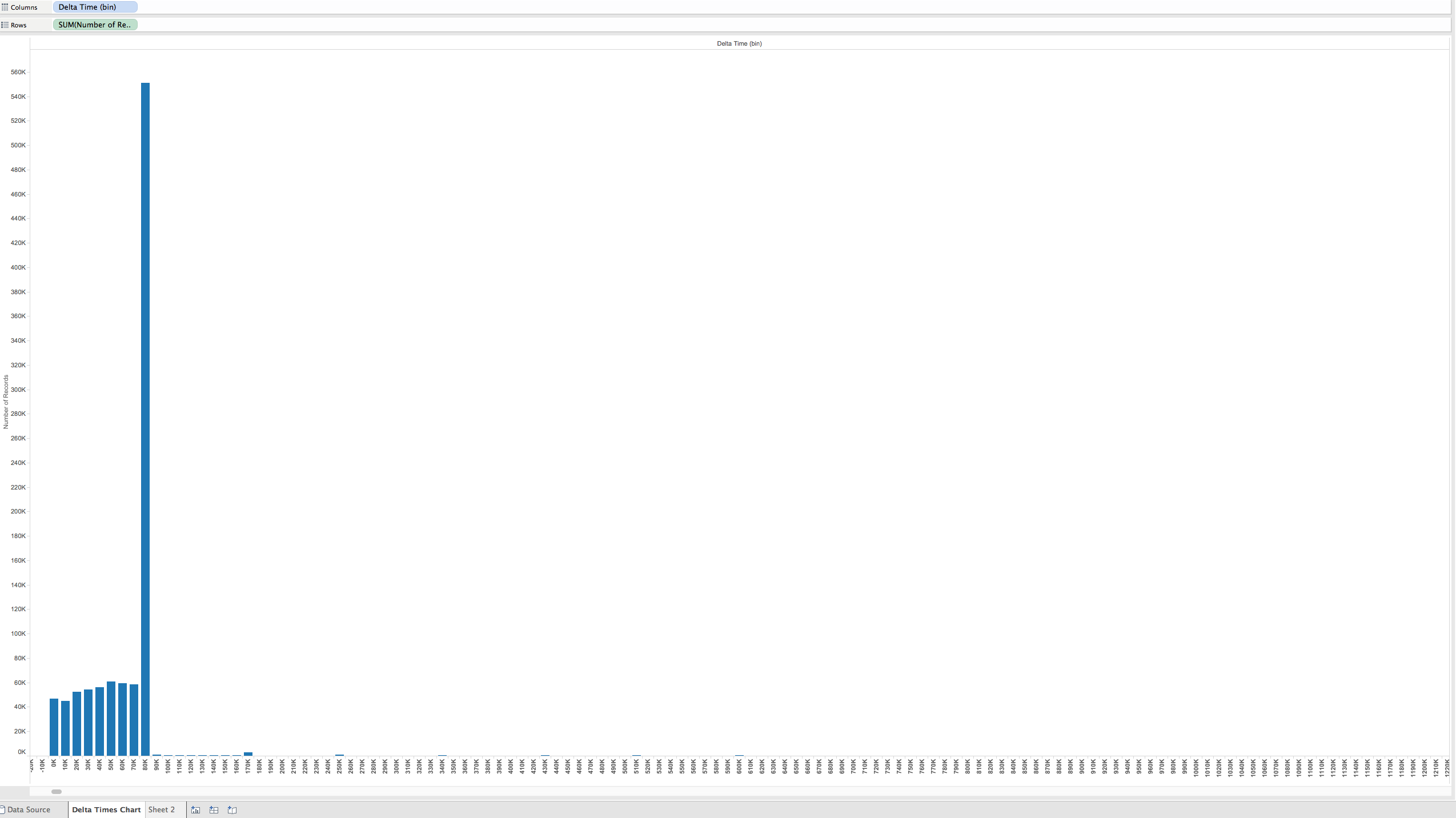

In the chart, above, the time deltas have been grouped into bins of 10,000 second increments. The number of deltas in the 80K-90K bin, which is approximately one day is 551,124. With a total of 1,070,436 lines in the .csv file, the percent of time deltas that are one day in length is 51.5% (551,124/1,070,040).
Is there a correlation between Firmware Version and Time Deltas?

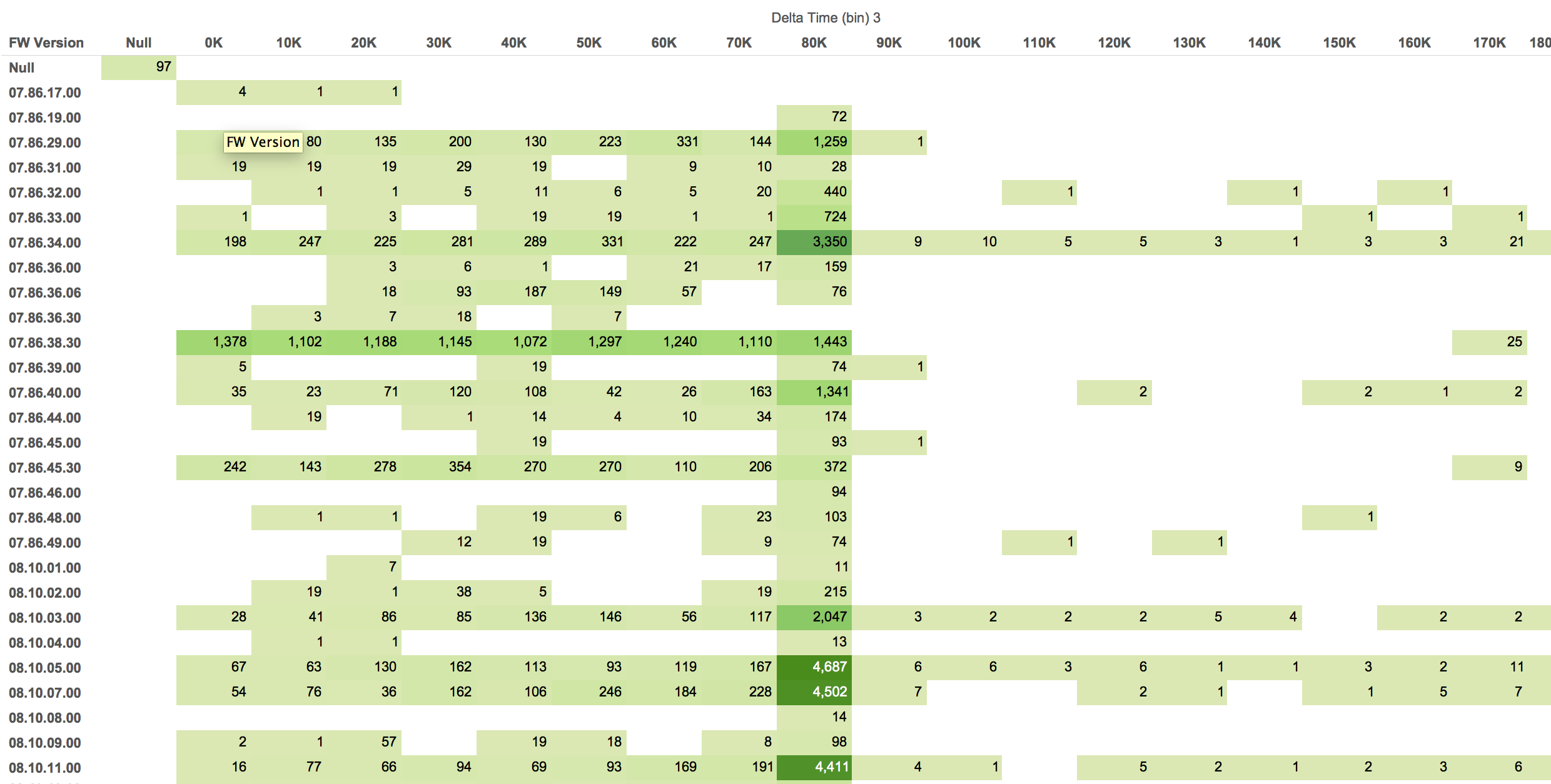

The chart above shows the distribution of delta times in 10,000 second increments over the firmware versions. Firmware version 7.86.38.30 shows a distinct pattern of delta times that are less than 1 day (80K bin).
What is the mean and standard deviation of the delta times for each system serial number?
https://public.tableau.com/profile/publish/Bigdata_Book/Sheet1#!/publish-confirm

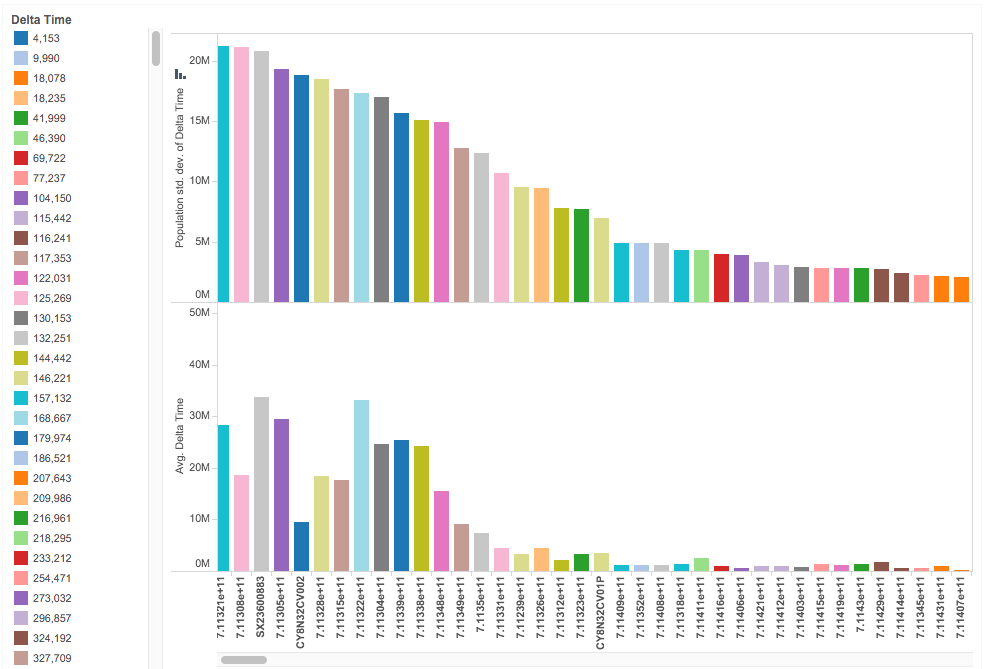

The distribution of standard deviations is shown in the top chart; the means in the bottom chart.
Which release had the most instances of delta times around 24 hours?

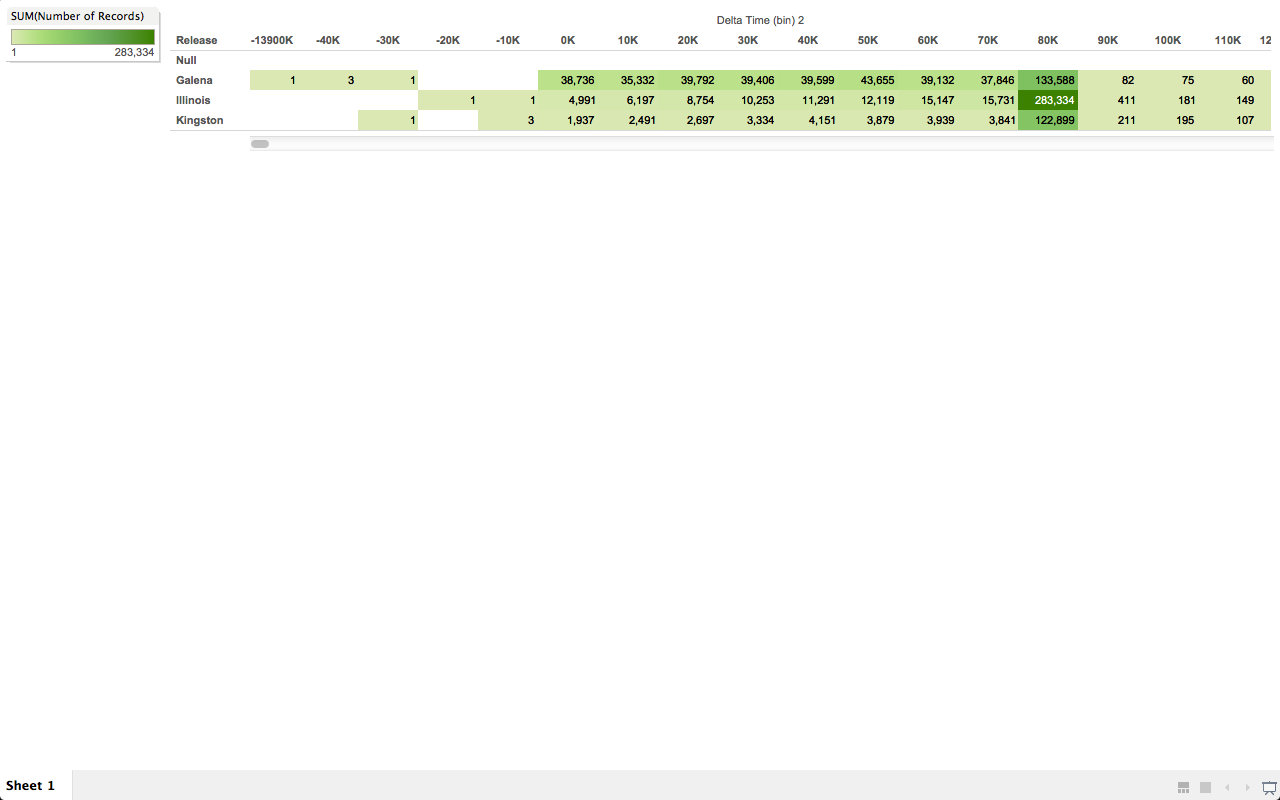

The chart above shows the distribution of delta times in 10,000 second increments over releases.
Further Analysis
Our team determines the following questions are too complex for Tableau and require custom scripts to be written.
The development of Time Maps might be to complex for Tableau. Time Maps could be used to graph observations based on their time difference from the previous observation (x-axis) and the next observation (y-axis). We already have the x-axis values. These are the Delta Times. We would need to calculate the y-axis values which are the deltas between the current Observation Time and the next for a particular system.
Calculate the most frequently occurring invalid delta time that is in common across both controller types, A and B.
